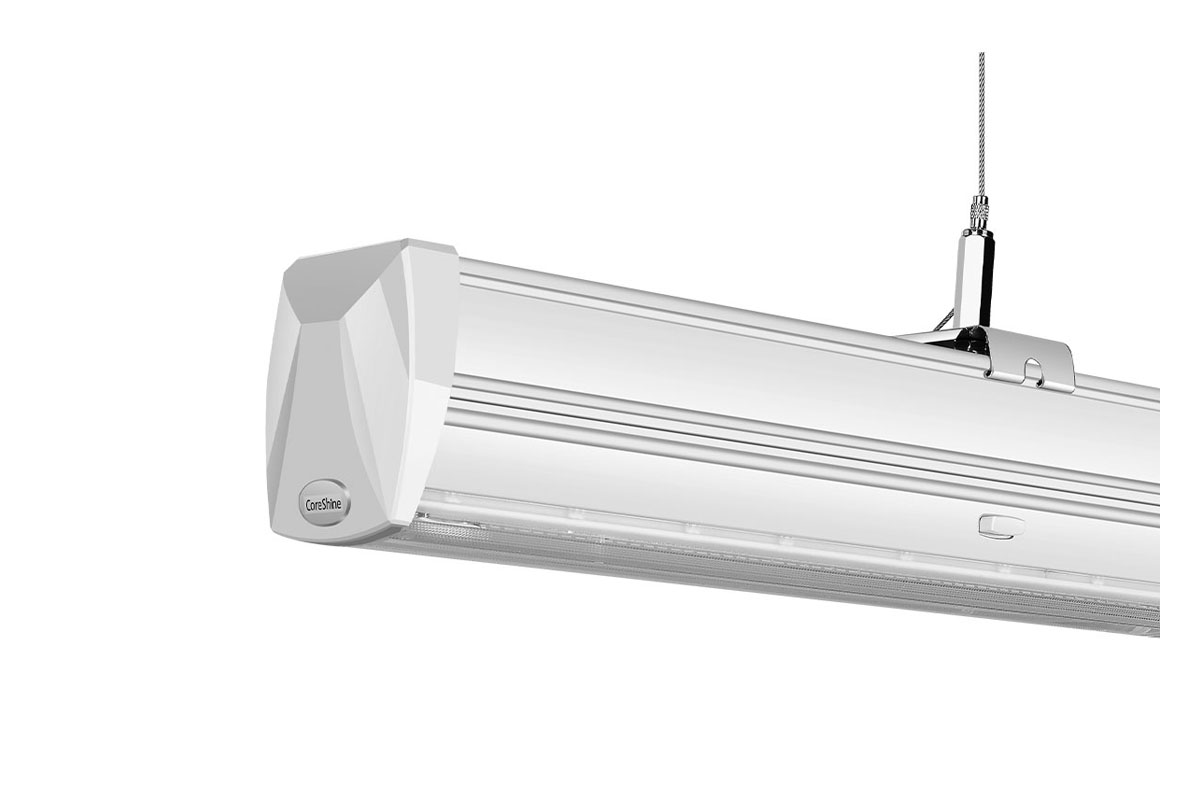

S-LINE LINEAR TRUNKING SYSTEM | 70W DALI
The Lcarelighting S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
1500mm – 70W DALI2.0 DT6 AC220-240V
160LM / 180LM per watt energy saving and cost -effective
Pre-wired trunking rail, plug & play, tool-free installation
L , T , X node connector
Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
Emergency, Track spotlight module, Sensor module, Exit sign module
Cord / chain / rod / surface mounted / mounting clip
Total power up to 3500W per line
ELECTRICAL DATA
- Model No. CFLS-1570-DA
- Outer Dimensions 1500*76*70mm
- Input Power 70W
- Dip Switch to 55/60/65/70W
- Input Voltage 220 – 240VAC
- Input Current 0.4A max
- Mains Frequency 50/60HZ
- PF (at 230 V, 50 Hz) 0.9
- Dimming DALI2 dimming
- Type of Protection IP20
- Ambient Temperature -25 – 40°C
- Storage Temperature -40 – 85°C
- Emergency Option Support external emergency or built-in battery
- Warranty 5 years
PHOTOMETRICAL DATA
- CCT 2700-6500K
- Lumen 12600lm
- Lumens Efficiency 180lm/W
- CRI 80Ra
