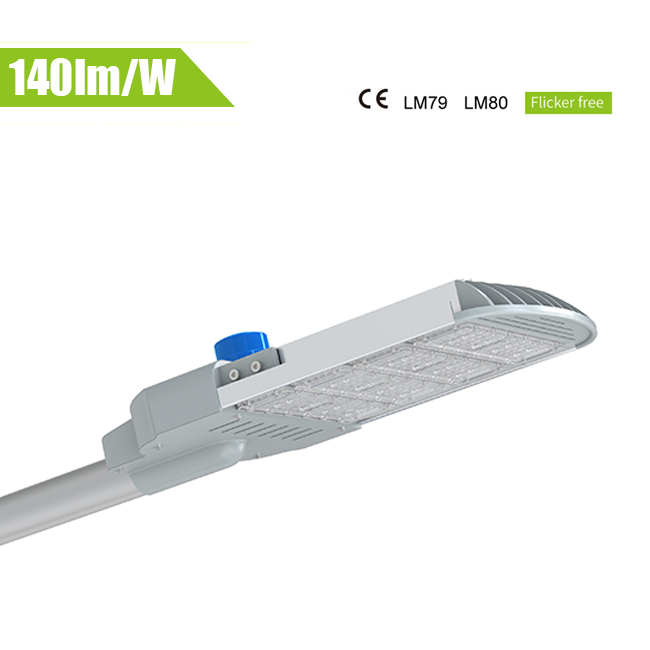

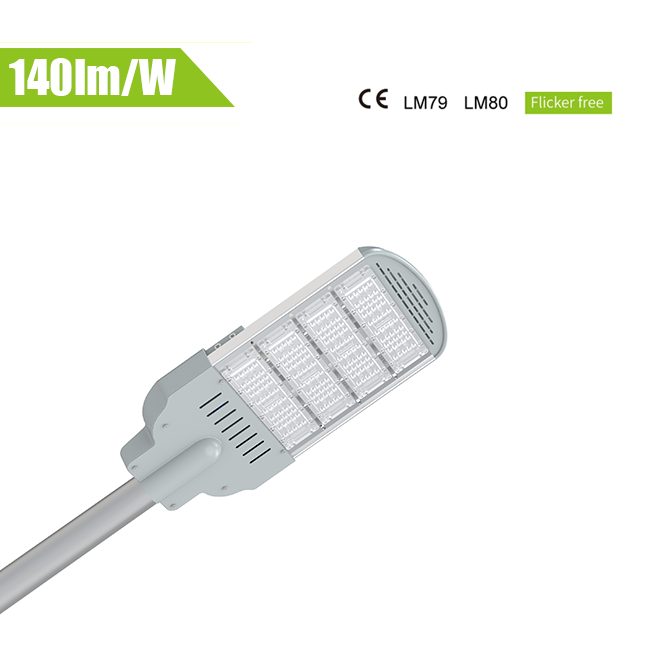

LED Street Light SL-ST07 30W-200W-ST07 LED Street Light G Series
ST07 LED Street Light G Series
Performance Parameters
● Luminous Efficiency: 140LM/W
● Input Voltage: 100-240VAC 50/60Hz
● Power Consumption: 30W 50W 70W 90W 150W 200W
● Color Temperature: 3000K 3500K 4000K 4500K 5000K 5700K
● Color Rendering Index:Ra>70
● Power Factor:PF>0.95
● Beam Angle: TYPE II / TYPE III
● Working Temperature: -40~45℃
● LED Type: 2835
● Lifespan: 50,000hours
| Model | 30W | 50W | 70W | 90W | 150W | 200W |
|---|---|---|---|---|---|---|
| PF | >0.95 | |||||
| Input Voltage(V) | 100-240VAC | |||||
| CRI | Ra70 | Ra70 | Ra70 | Ra70 | Ra70 | Ra70 |
| Efficacy (lm/W)±5% | 140 | 140 | 140 | 140 | 140 | 140 |
| Lumen Output±5% | 4200 | 7000 | 9800 | 12600 | 21000 | 28000 |
| CCT (K) | 3000K / 3500K / 4000K / 4500K / 5000K / 5700K | |||||
| Dimming | 1-10V Dimming | |||||
| Intelligent Control | Photo cell | |||||
| Beam Angle | TYPE II / TYPE III | |||||
| Material | Die-Cast + PC Lens | |||||
| Operating Tenperature | -40℃ ~ 45℃ | |||||
| Humidity | 10%~90% | |||||
| Installation | POLE | |||||
| LED Type | 2835 | |||||
| Power Supply | SS / ZH | |||||
| Surge Protection | 4kV line-line, 6kV line-earth | |||||
| Certification | CE / RoHS | |||||
| IP Rate | IP65 | |||||
| Warranty | 5 Years | |||||
| Model No. | Power(W) | Size(mm) | Carton Size(mm) | G.W/1PCS±0.2KG |
|---|---|---|---|---|
| SL-STA00-30Y-XX-G | 30W | L370(14.56in.)*W310(12.2in.)*H106(4.17in.) | L425*W365*H150 | 3.55KG |
| SL-STA00-50Y-XX-G | 50W | L370(14.56in.)*W310(12.2in.)*H106(4.17in.) | L425*W365*H150 | 3.55KG |
| SL-STA00-70Y-XX-G | 70W | L440(17.32in.)*W310(12.2in.)*H106(4.17in.) | L495*W365*H150 | 4.40KG |
| SL-STA00-90Y-XX-G | 90W | L440(17.32in.)*W310(12.2in.)*H106(4.17in.) | L495*W365*H150 | 4.40KG |
| SL-STA00-150Y-XX-G | 150W | L520(20.47in.)*W310(12.2in.)*H106(4.17in.) | L565*W365*H150 | 5.30KG |
| SL-STA00-200Y-XX-G | 200W | L600(23.62in.)*W310(12.2in.)*H106(4.17in.) | L660*W380*H190 | 6.01KG |
-
- Description:
-
- Model name description: SL-STA00-30Y-XX-G;
-
- “SL” indicates the name of company producing the product;
-
- “ST” indicates the product is a LED Sreet Light;
-
- “A00” indicates the voltage of the product;
-
- “30” indicates the power of the product,it can be 50、70、90、150、200；
-
- “Y” indicates the colour temperature of the product. “Y” can be N=3000K,M=3500K,L=4000K,K=4500K,C=5000K,H=5700K represents color temperature；
-
- Where“ XX ”represent light angle, it can be T I,T II,T III,T IV,T V;
-
- “G” indicates the shape size.
| Housing: | Die-Cast |
|---|---|
| Cover: | PC Lens |
| Cable Length: | 400mm |
| IP Rate: | IP 65 |
| IK Rate: | IK 10 |
| Light Efficiency up to 140lm/W
Street Light G Series can save 90% energy with its high efficacy, compared with other lighting fixture with the same watt , which makes it to be a high standard luminaire in the market.
IP65 & IK10

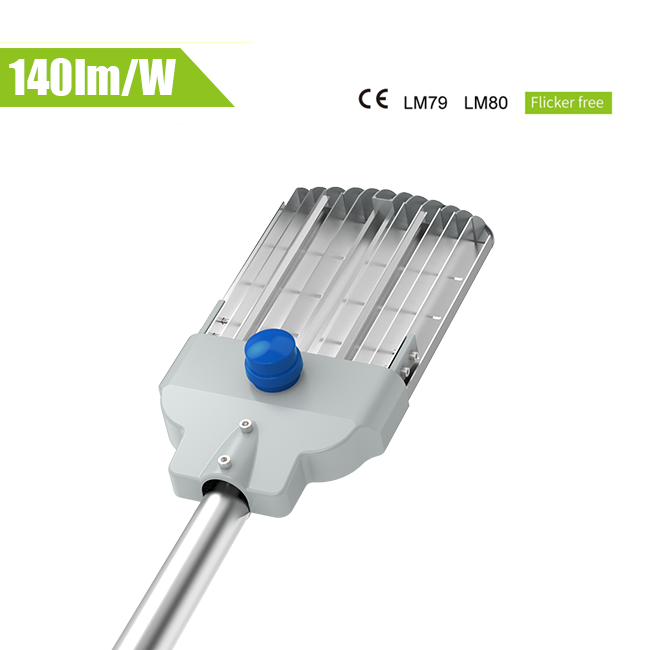

Photocell The light operating depends on the ambient luminance. When it is dark or dawn, it will
lighten with a suitable luminance automatically. |
 |
Efficiency up to 140lm/w
This is a world class street light in terms of easy maintenance, high lumen efficiency,
much energy saving as well as consideration and respect for the environment.

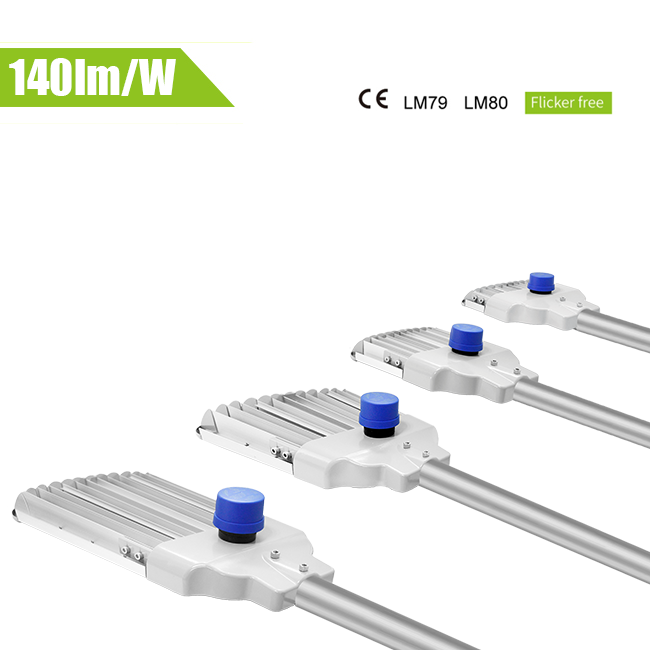

Full Power for Various Roads
Street Light G Series has four sizes that compatible with different power which happens for all kinds of roads.
| Test Item | Structure Classification | Testing Conditions | Testing parameters | Testing Time | Limiting Value |
|---|---|---|---|---|---|
| Hipot test | ▪ Class I | input-shell | 1000+2U (AC) | 1min | 10mA Max. |
| ▫ Class II | input-shell | 2000+4U (AC) | 1min | 10mA Max. | |
| ▫ Class III | input-shell | 500Vdc | 1min | 10mA Max. | |
| Insulation Resistance | ▪ Class I | input-shell | 500Vdc | 1min | 2MΩ Min. |
| ▫ Class II | input-shell | 500Vdc | 1min | 4MΩ Min. | |
| ▫ Class III | input-shell | 100Vdc | 1min | 1MΩ Min. | |
| Leakage Current | ▪ Class I | input-shell | 220V/50Hz | 10S | 0.5mA Max. |
| ▫ Class II | input-shell | 220V/50Hz | 10S | 1.0mA Max. | |
| Ground Resistance | ▪ Class I | Grounding wirmetal shell | 10A | 1min | 500mΩ Max. |
| Certification Categories | Conform to the standard specification | Meet Certified | Meet Certified |
|---|---|---|---|
| CE | EN60598-1; EN60598-2-1; EN62493; EN55015; EN61000-3-2; EN61000-3-3; EN61547; EN62471 | √ | √ |
| SAA | IEC60598-2-1:1979(First Edition)+A1:1987 used in conjunction With IEC60598-1:2014(Eighth Edition) | ||
| RoHS | 2011/65/EU directive (RoHS 2.0) | ||
| Energy Star | ENERGY STAR® Program Requirements Product Specification for Luminaires (Light Fixtures) Eligibility Criteria Version 2.0 |
