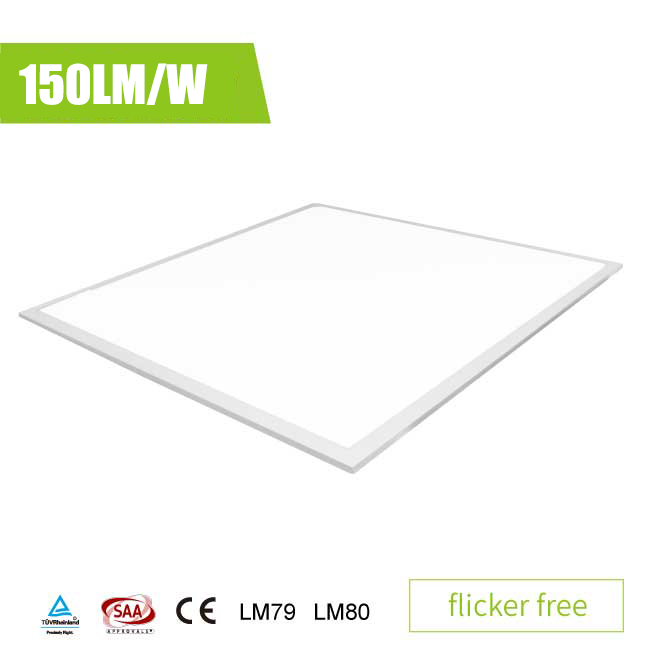

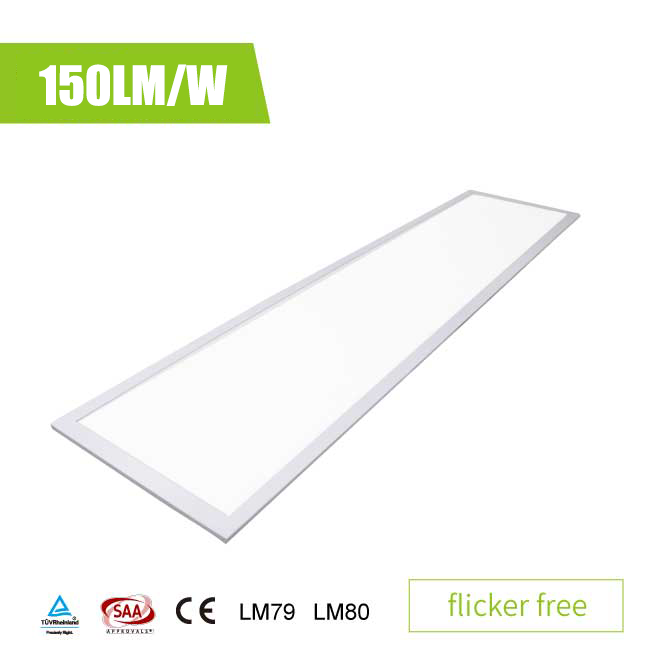

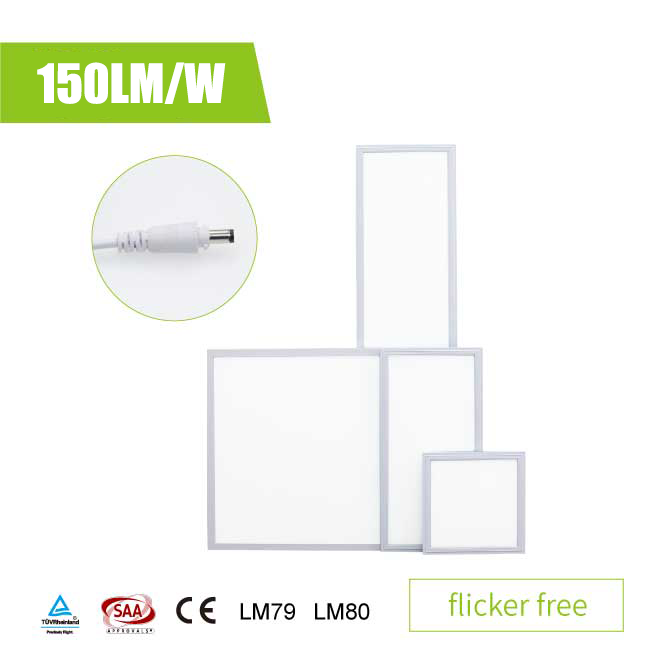

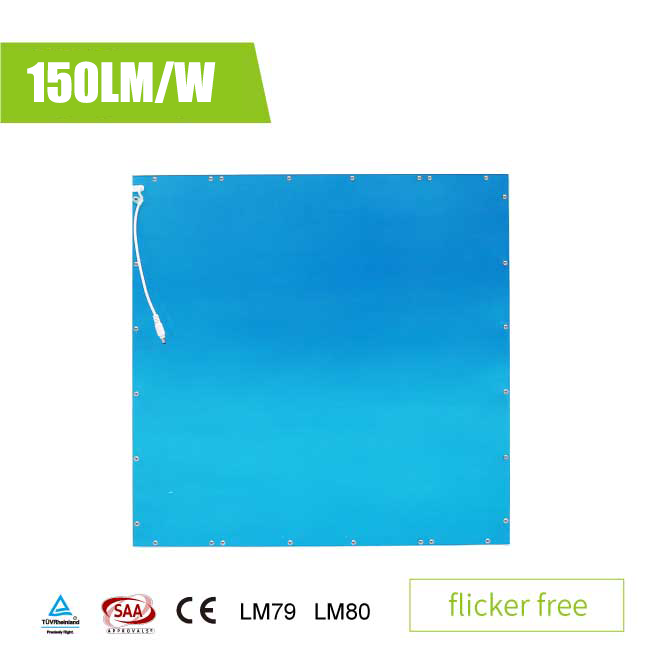

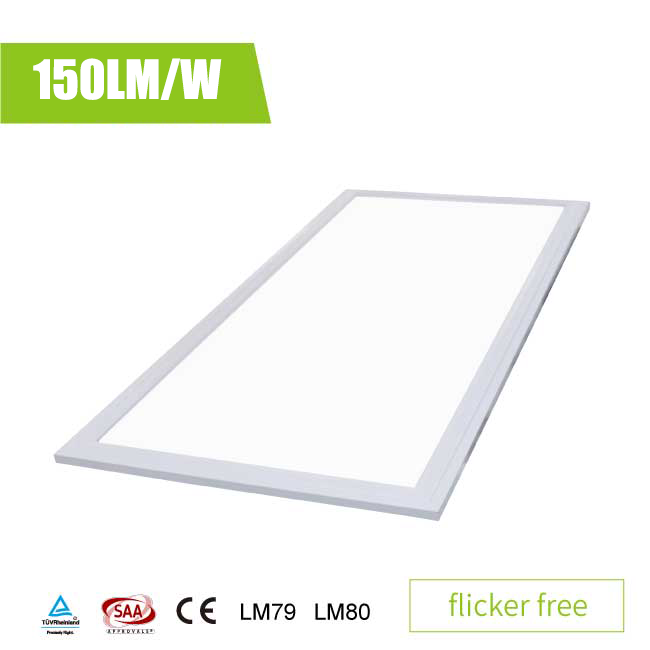

150lm/W Dimmable Panel Light
- TypeName：SL-PLE301225-J-T, SL-PLE606025-J-T, SL-PLE626225-J-T, SL-PLE601240-J-T,
- Specifications: SAA TUV CE LM79 LM80
Performance Parameters
● Luminance Efficacy: Frosted Cover: 150LM/W
● Power Consumption: 25W / 40W
● Input Voltage：AC200~240V
● Color Temperature: 3000-6500k
● Beam Angle: 120°
● Operation Temperature: –20℃～40℃
● Storage Temperature : -20℃ to +60℃
● LED Type: 2835 LED
● Lifespan: ＞50,000hours
● Driver Type: Isolation Driver
● Operating Humidity : ≤85%
1. It has various advantages of conventional panel lamp.
2. Realize Dali dimming and color matching. With intelligent panel light function.
3. Use environment: Hotel, factory, office, etc.
| Model | L(mm) | W(mm) | H(mm) |
|---|---|---|---|
| SL-PLE301225-J-T | 295 | 1195 | 10 |
| SL-PLE606025-J-T | 595 | 595 | 10 |
| SL-PLE626225-J-T | 620 | 620 | 10 |
| SL-PLE601240-J-T | 595 | 1195 | 10 |
| Model | Light effect(lm/w) | Luminous flux(Lm) | Power（W) | CCT（K) | CRI(Ra) | Life(h） | Dimming mode | IP Grade | Applicable temperature |
|---|---|---|---|---|---|---|---|---|---|
| SL-PLE301225-J-T | 150 | 3750 | 25 | 3000-6500
continuously adjustable |
>80 | 50000 | Dali dimming | IP20 | Operating temperature
and range:-20-40°C≤85%RH |
| SL-PLE606025-J-T | 3750 | 25 | |||||||
| SL-PLE626225-J-T | 3750 | 25 | |||||||
| SL-PLE601240-J-T | 6000 | 40 |
1.Embedded:The installation environment requires that the ceiling has a standard size ceiling or keel. To install it, you only need to remove the ceiling at the corresponding position, and then replace it with the corresponding panel light. No additional installation accessories are required.
Installation environment requirements, snap springs embedded, opening holes in the ceiling, the size of the opening is small rain panel lamp size, and then rely on the elastic force of the spring to attract the lamp to the ceiling (as shown above)
2.Ceiling mounted:Installation environment requirements, the height of the storey is high, the ceiling is keel or solid wall structure, and the lamp is suspended in the room by the suspender (as shown in the above picture)
3.Ceiling type:
1.Determine the location of the lamp to be installed, directly screw on the screw, and fix the aluminum adapter frame on the cement roof.
2.Connect the wires internally and make sure the power is on
3Place the lamp body in the aluminum frame
4.The whole lamp is installed, the overall appearance is elegant, the whole thickness is about 4cm
1. Commercial packaging
| Model | Carton Box(mm) | N.W.(Kg)/PCS | G.W/(Kg)/Carton | PCS/Carton |
|---|---|---|---|---|
| SL-PLE301225-J-T | L*W*H=1285*135*400 | 2.3 | 15.0 | 6 |
| SL-PLE606025-J-T | L*W*H=685*135*700 | 2.4 | 15.6 | 6 |
| SL-PLE626225-J-T | L*W*H=710*135*725 | 2.6 | 16.8 | 6 |
| SL-PLE601240-J-T | L*W*H=1285*135*700 | 4.8 | 21.2 | 4 |
