Specifications:
● Frosted Cover: 160lm/w；
● Clear Cover:170lm/W
● Input Voltage:AC100-240V  50/60Hz
● Power6W/9W/12W/18W/20W/25W/30W/
● Color temperature:3000K  4000K  5000K  6000K
● Color Rendering Index: >80
● Power Factor:>0.95
● Beam Angle:140°
● Working Temperature:-20~48℃
● Storage Temp:-40~80℃
● Environment Humidity:＜95%
● LED Type:SMD2835
● Lifespan:>50,000hours
● On-off  times:>100,000 Times
● Rotatable end cap:Available







Product Features：

● Pretty and elegant appearance,G13 fixed or rotating end cap is available.
● Colorful metal rings available, Blue, Green, Silver, Red and Gold.
● ODM service available,Laser print customer LOGO and customer exclusive lable.
● 6063 Aluminum shell, Japan PC cover, long lifespan.
● Professional design of optics, no shadow, no light spot.
● Mainly used in factory, supermarket, carpark, hospital and school.
Product Model



Model No. Length Power Lumen(lm) Size(mm) Carton Size(cm) G.W25PCS
SL-DGA00-206WT-G8-T 2ft 6W 960 Φ26*L588 L66*W22*H22 6.7kg
SL-DGA00-209WT-G8-T 2ft 9W 1440 Φ26*L588 L66*W22*H22 6.7kg
SL-DGA00-312WT-G8-T 3ft 12W 1920 Φ26*L892 L95*W22*H22 10.6kg
SL-DGA00-412WT-G8-T 4ft 12W 1920 Φ26*L1198 L125*W22*H22 10.6kg
SL-DGA00-418WT-G8-T 4ft 18W 2880 Φ26*L1198 L125*W22*H22 12.9kg
SL-DGA00-420WT-G8-T 4ft 20W 3200 Φ26*L1198 L156*W22*H22 12.9kg
SL-DGA00-520WT-G8-T 5ft 20W 3200 Φ26*L1498 L156*W22*H22 14.9kg
SL-DGA00-525WT-G8-T 5ft 25W 4000 Φ26*L1498 L156*W22*H22 14.9kg
SL-DGA00-530WT-G8-T 5ft 30W 4800 Φ26*L1498 L156*W22*H22 15.0kg



*Remarks: “W”means 6000K. 3000K ,4000K available, Only change “W” to “N”,“L” in Model No.
Drawing of Products



2feet(0.6m) 3feet(0.9m) 4feet(1.2m) 5feet(1.5m) 8feet(2.4m)
A 602mm 906mm 1213mm 1513mm 2362mm
B 588mm 892mm 1198mm 1498mm 2348mm

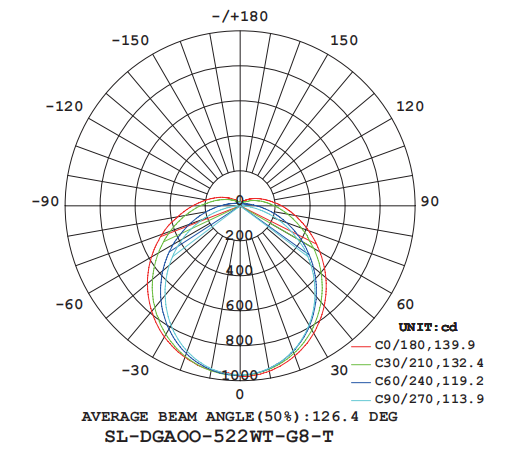

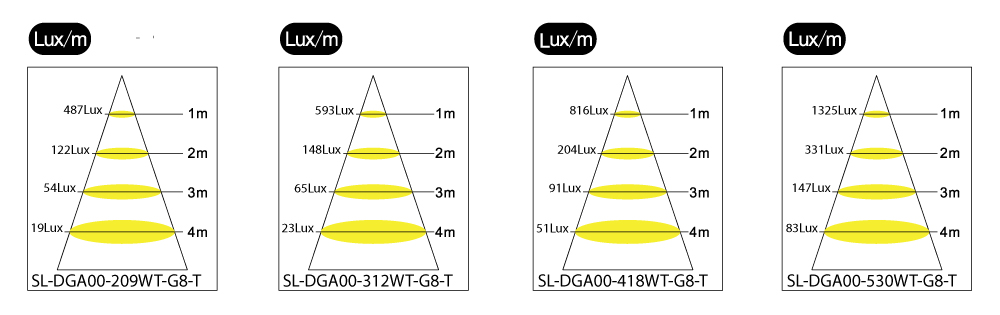

Photometric Data

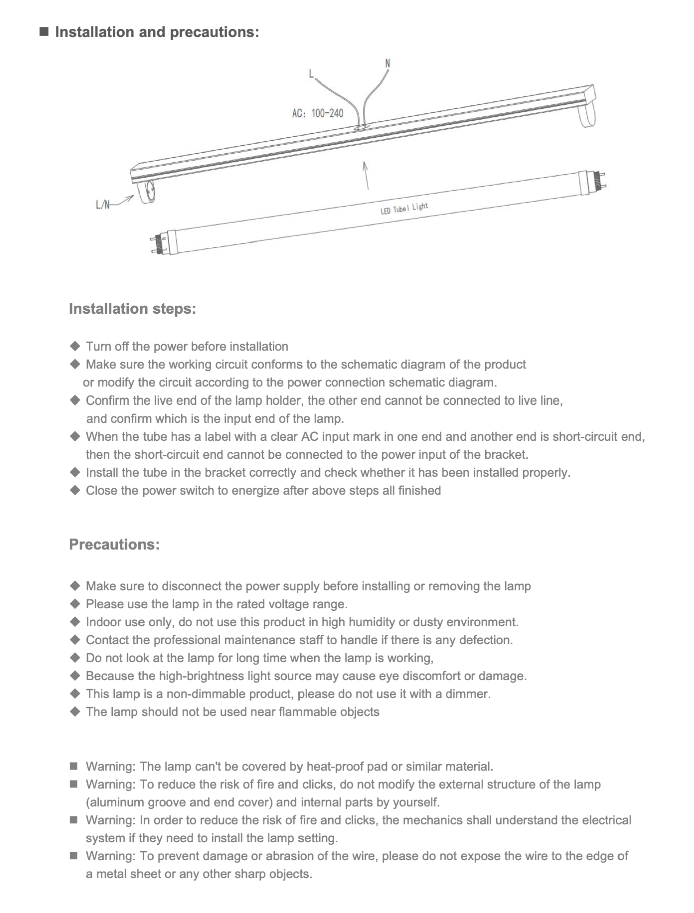

Installation
Fluorescent tube replacment，e.g. Office, Retail store, Classroom, Commercial & Industrial

Fluorescent tube replacment，e.g. Office, Retail store, Classroom, Commercial & Industrial



]]> https://lcarelighting.com/product/160lm-t8-tube/feed/ 0 1968 S501 TUV/SAA T5 Tube https://lcarelighting.com/product/s501-tuv-saa-t5-tube/ Thu, 30 May 2024 07:45:28 +0000 https://lcarelighting.com/?post_type=product&p=1966

Specifications:

Luminance Effiffifficacy: Frosted Cover:160lm/W
Clear Cover:170lm/W
LED Type: 2835 LED, Epistar
Input Voltage: AC100-240V
CCT: 3000K 4000K 5000K 6000K
CRI: >80
PF: >0.95
Beam Angle: 140° (Frosted Cover)
Driver Type: Internal Driver

Working Temperature: -20℃-48℃



Product Features:

1. Pretty and elegant appearance, patented product.
2. Directly install on the existing T5 fifixture.
3. Colorful metal rings available,Blue,Green,Silver,Red and Gold.
4. G5 fifixed or ratating end cap is available.
5. 6063 Aluminum housing,polycarbonate cover,long lifespan.
6. ODM/OEM service available, Laser print customer LOGO and customer  exclusive lable.
7. Mainly used in factory,supermarket,carpark,hospital and school.
Product Model



Model No. Length Power Lumen(lm) Size(mm) Carton Size(cm) GW/25PCS
SL-DGA00-209WT-G5-T 2ft 9W 1440 Φ22*L548 L60*W19*H12 5.6kg
SL-DGA00-312WT-G5-T 3ft 12W 1920 Φ22*L848 L90*W19*H12 7.4kg
SL-DGA00-412WT-G5-T 4ft 12W 1920 Φ22*L1148 L120*W19*H12 10.6kg
SL-DGA00-418WT-G5-T 4ft 18W 2880 Φ22*L1148 L120*W19*H12 10.6kg
SL-DGA00-425WT-G5-T 4ft 25W 4000 Φ22*L1148 L120*W19*H12 10.6kg
SL-DGA00-525WT-G5-T 5ft 25W 4000 Φ22*L1448 L150*W19*H12 12.2kg
SL-DGA00-530WT-G5-T 5ft 30W 4800 Φ22*L1448 L150*W19*H12 12.9kg
SL-DGA00-535WT-G5-T 5ft 35W 5600 Φ22*L1448 L150*W19*H12 12.9kg

*Remarks: The same model also can do “3000K” ,”4000K”,Only change W between to N,L

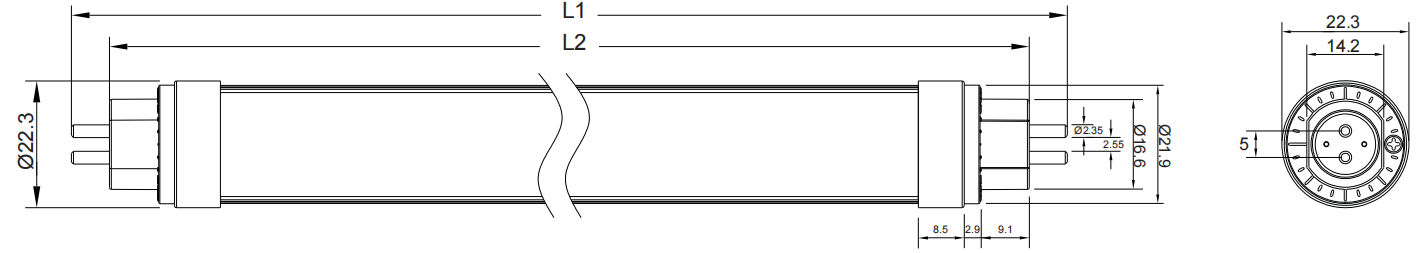

Drawing of Products



2feet(0.6M) 3feet(0.9M) 4feet(1.2M) 5feet(1.5M)
A 562mm 862mm 1162mm 1462mm
B 548mm 848mm 1148mm 1448mm

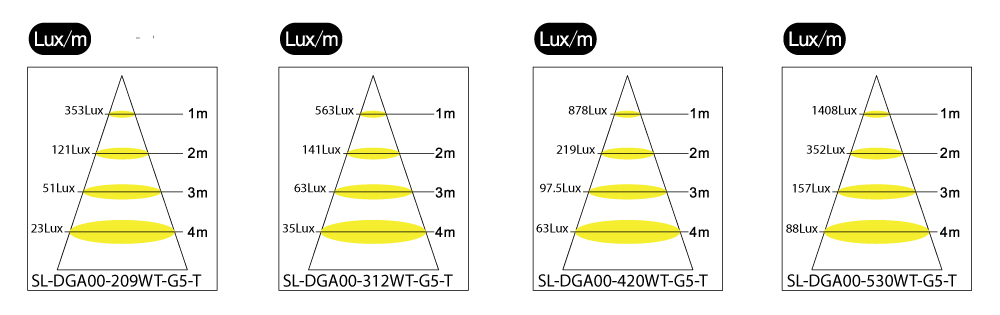

Photometric Data

Installation

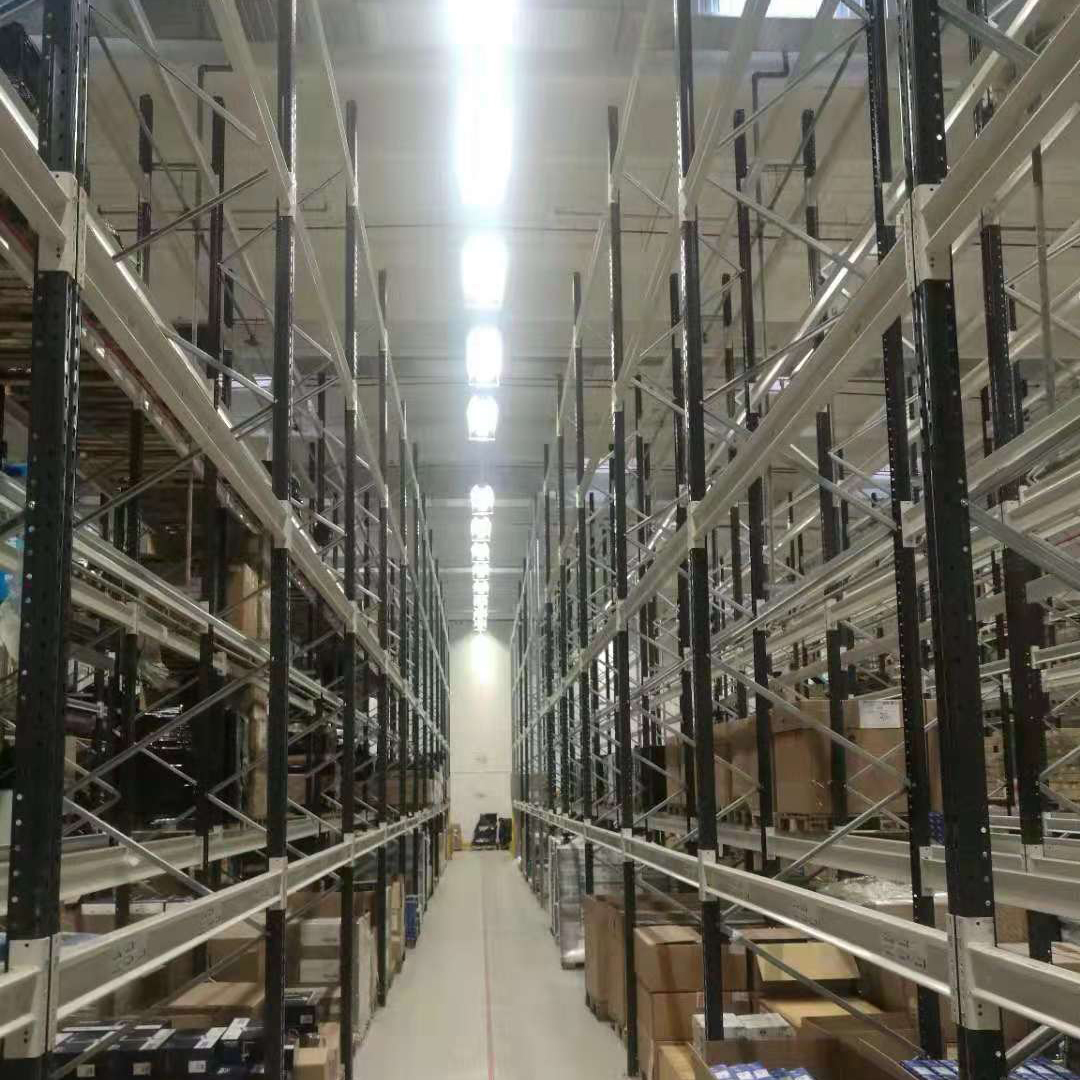

Case
General fluorescent tube replacment,e.g. Offics,Retail,Education, Commercial & Industrial

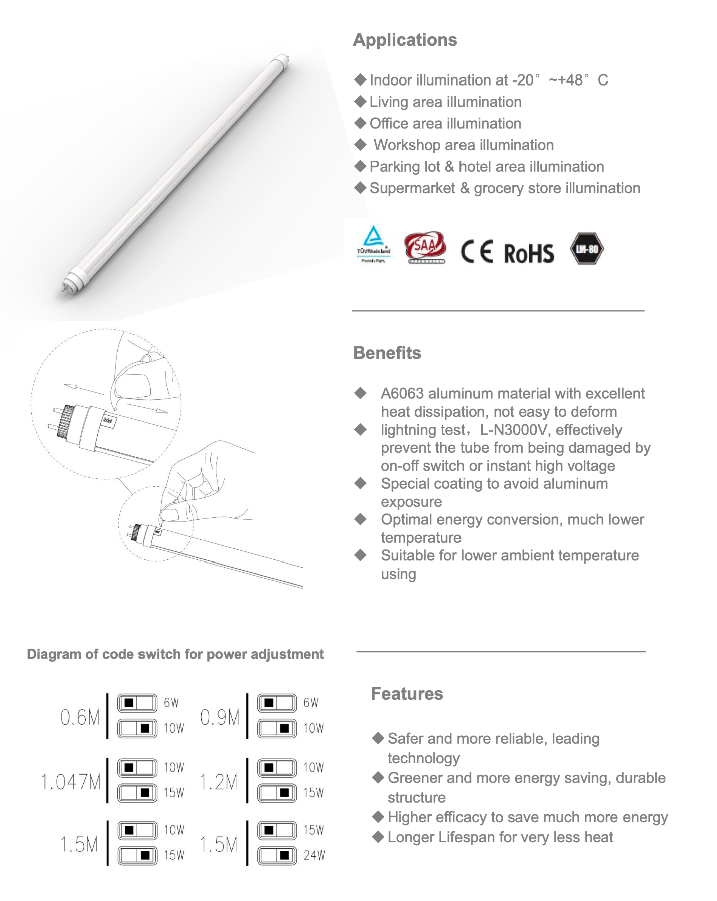

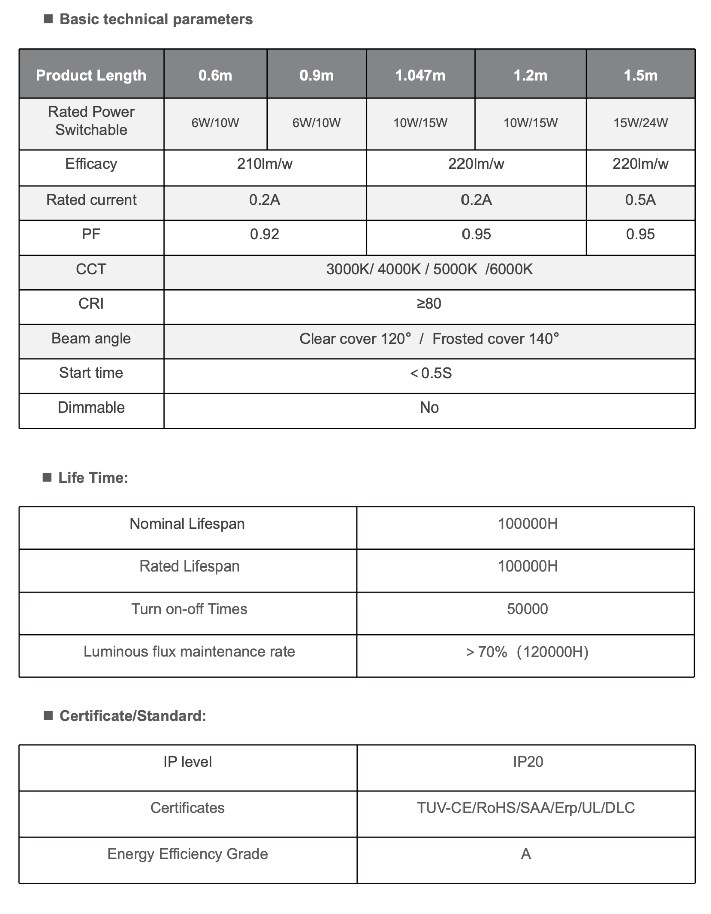

]]> 1966 LCARE T8 LED Tube Light 220lm/W https://lcarelighting.com/product/lcare-t8-led-tubes-220lm-w/ https://lcarelighting.com/product/lcare-t8-led-tubes-220lm-w/#respond Mon, 13 May 2024 18:59:30 +0000 https://lcarelighting.com/?post_type=product&p=1894 ✅ Wattage Switchable: Easily adjust between power levels (6W/10W, 10W/15W, 15W/24W)

✅ Ultra High Efficiency: Up to 220 lm/W – significantly reduces energy consumption

✅ Long Life: Rated lifespan of 100,000 hours, 50,000 on/off cycles

✅ Wide CCT Options: 3000K, 4000K, 5000K, 6000K

✅ Stable Performance: Power factor ≥0.95, CRI ≥80

✅ Robust Build: Made with A6063 aluminum housing and high-quality PC cover

✅ Global Certifications: TUV-CE, RoHS, SAA, ErP, UL, DLC

✅ Safe & Easy Retrofit: Compatible with magnetic and electronic ballasts

✅ IP20 Rated: For indoor environments

]]> T8 LED Tube Light 220lm/W

Case
General fluorescent tube replacment,e.g. Offics, Retail, Education, Commercial & Industrial

]]> https://lcarelighting.com/product/lcare-t8-led-tubes-220lm-w/feed/ 0 1894 S803 TUV/SAA T8 Tube https://lcarelighting.com/product/s803-tuv-saa-t8-tube/ https://lcarelighting.com/product/s803-tuv-saa-t8-tube/#respond Mon, 13 May 2024 18:23:46 +0000 https://lcarelighting.com/?post_type=product&p=1885 S803T Plus T8 175Lm/w Tube Lighting

S803T T8 160Lm/w Tube Lighting

S803T T8 140Lm/w Tube Lighting

S803T T8 110Lm/w Tube Lighting

  • Type Name：S803 SERIES T8 TUBE
  • Certificates: TUV SAA CE(EMC,LVD) RoHS
  • S803T Plus T8 TUBE Lighting Details



    Specifications:
    ● Frosted Cover: 175lm/w；
    ● Clear Cover:180lm/W
    ● Input Voltage:AC100-240V  50/60Hz
    ● Power:9W/12W/18W/20W/25W/30W/
    ● Color temperature:3000K  4000K  5000K  6000K
    ● Color Rendering Index: >80
    ● Power Factor:>0.95
    ● Beam Angle:140°
    ● Working Temperature:-20~48℃
    ● Storage Temp:-40~80℃
    ● Environment Humidity:＜95%
    ● LED Type:2835 LED，Epistar
    ● Lifespan:>50,000hours
    ● On-off  times:>100,000 Times
    ● Rotatable end cap:Available

    Product Features:
    ● Pretty and elegant appearance,G13 fixed or rotating end cap is available.
    ● Colorful metal rings available,Blue,Green,Silver,Red and Gold.
    ● ODM service available,Laser print customer LOGO and customer exclusive lable.
    ● 6063 Aluminum shell,Japan PC cover,long lifespan.
    ● Professional design of optics,no shadow,no light spot.
    ● Mainly used in factory,supermarket,carpark,hospital and school.
Product Model





Model No. Length Power Lumen Size(mm) Carton Size(cm) G.W/25PCS
SL-DGA00-209WT-G8-P 2ft 9W 1575lm Ø26*L588 L66*W22*H22 6.70KG
SL-DGA00-312WT-G8-P 3ft 12W 2100lm Ø26*L892 L95*W22*H22 10.60KG
SL-DGA00-412WT-G8-P 4ft 12W 2100lm Ø26*L1198 L125*W22*H22 12.90KG
SL-DGA00-418WT-G8-P 4ft 18W 3150lm Ø26*L1198 L125*W22*H22 12.90KG
SL-DGA00-420WT-G8-P 4ft 20W 3500lm Ø26*L1198 L125*W22*H22 12.90KG
SL-DGA00-520WT-G8-P 5ft 20W 3500lm Ø26*L1498 L156*W22*H22 14.90KG
SL-DGA00-525WT-G8-P 5ft 25W 4375lm Ø26*L1498 L156*W22*H22 14.90KG
SL-DGA00-530WT-G8-P 5ft 30W 5250lm Ø26*L1498 L156*W22*H22 15.00KG


Remarks: “W”means 6000K. 3000K ,4000K available, Only change “W” to “N”,“L” in Model No.

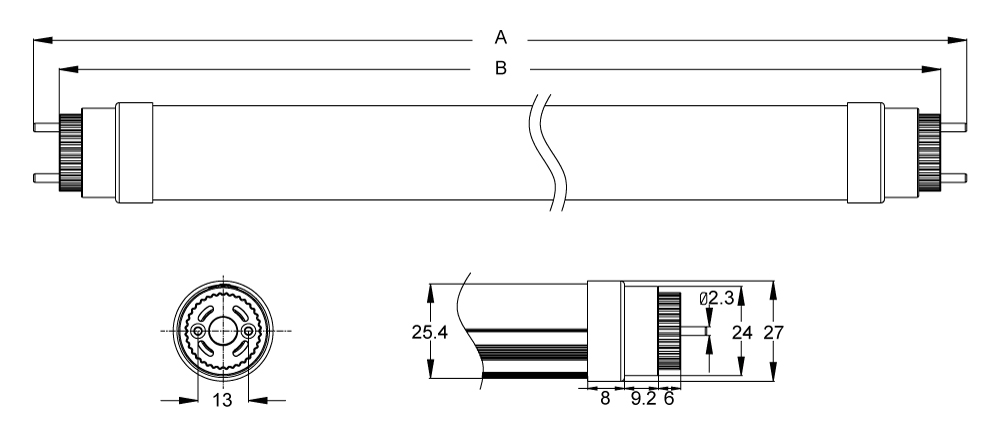

Drawing of Products



2feet (0.6m) 3feet (0.9m) 4feet (1.2m) 5feet (1.5m) 8feet (2.4m)
A 602mm 906mm 1213mm 1513mm 2362mm
B 588mm 892mm 1198mm 1498mm 2348mm

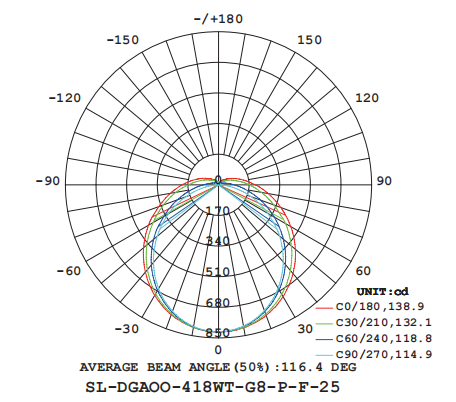

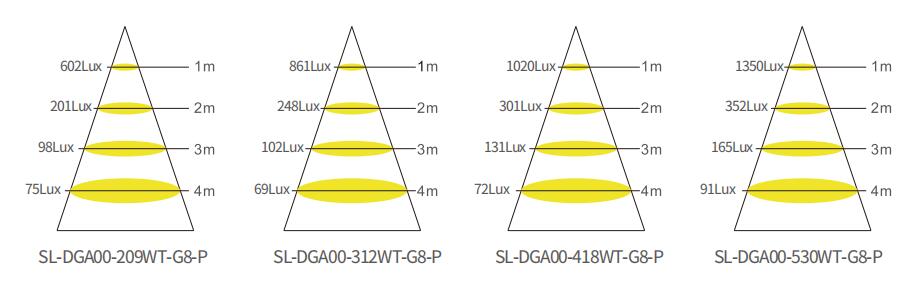

Photometric Data

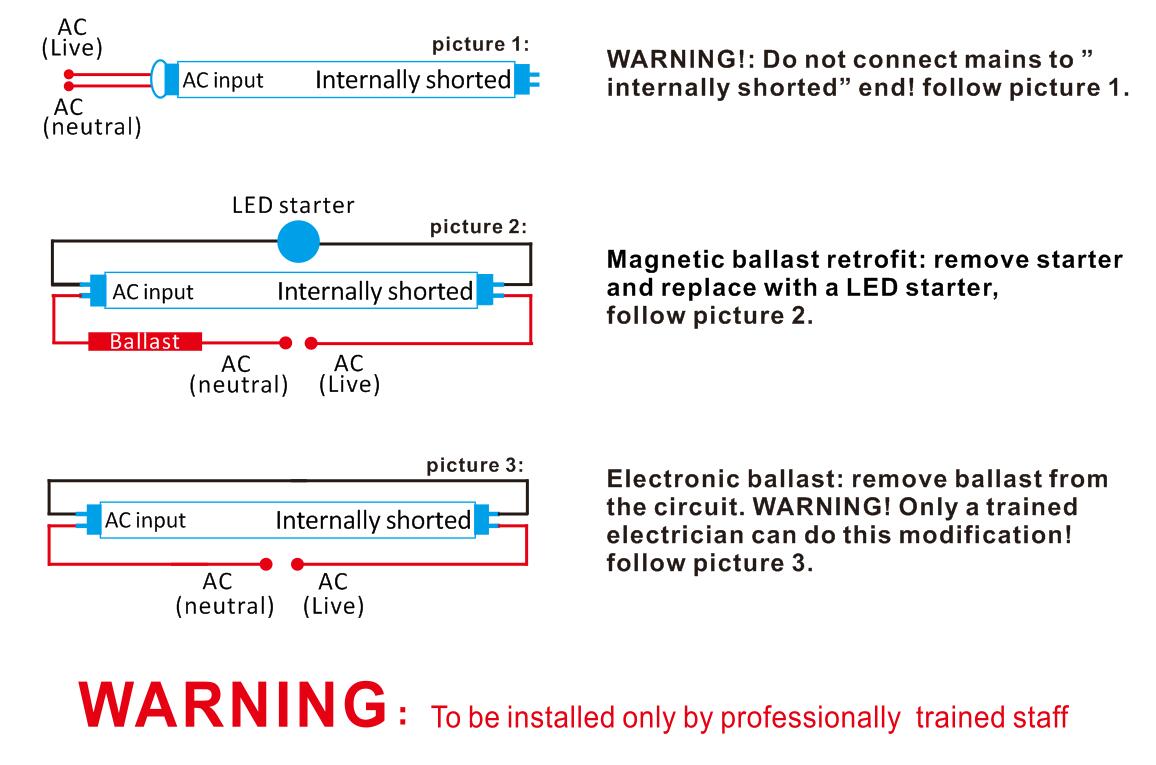

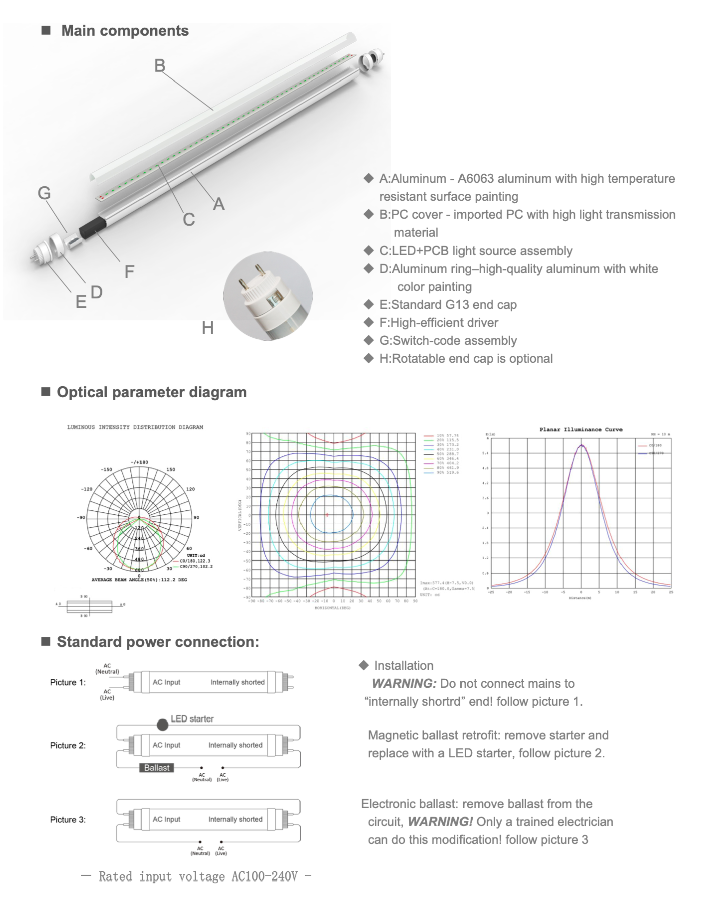

Installation

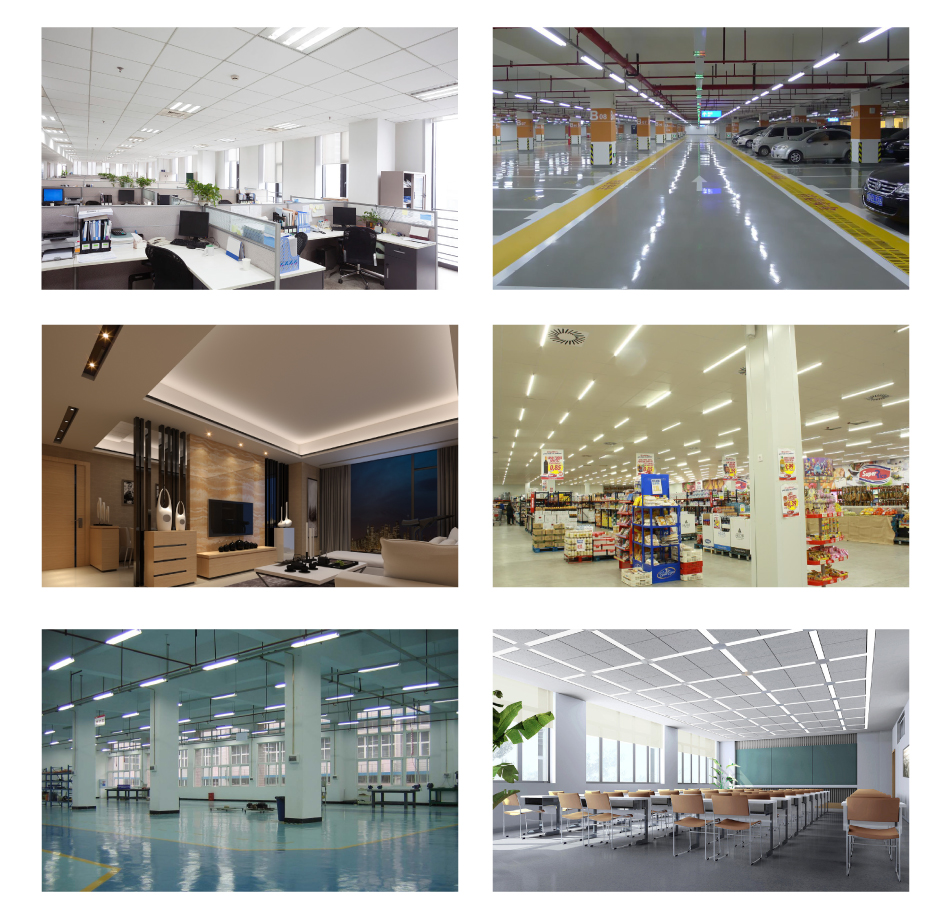

Case
General fluorescent tube replacment e.g. Offics,Retail,Education, Commercial & Industrial
PDF Download
 TUV-EMC TUV-LVD RoHS SAA
